We Say

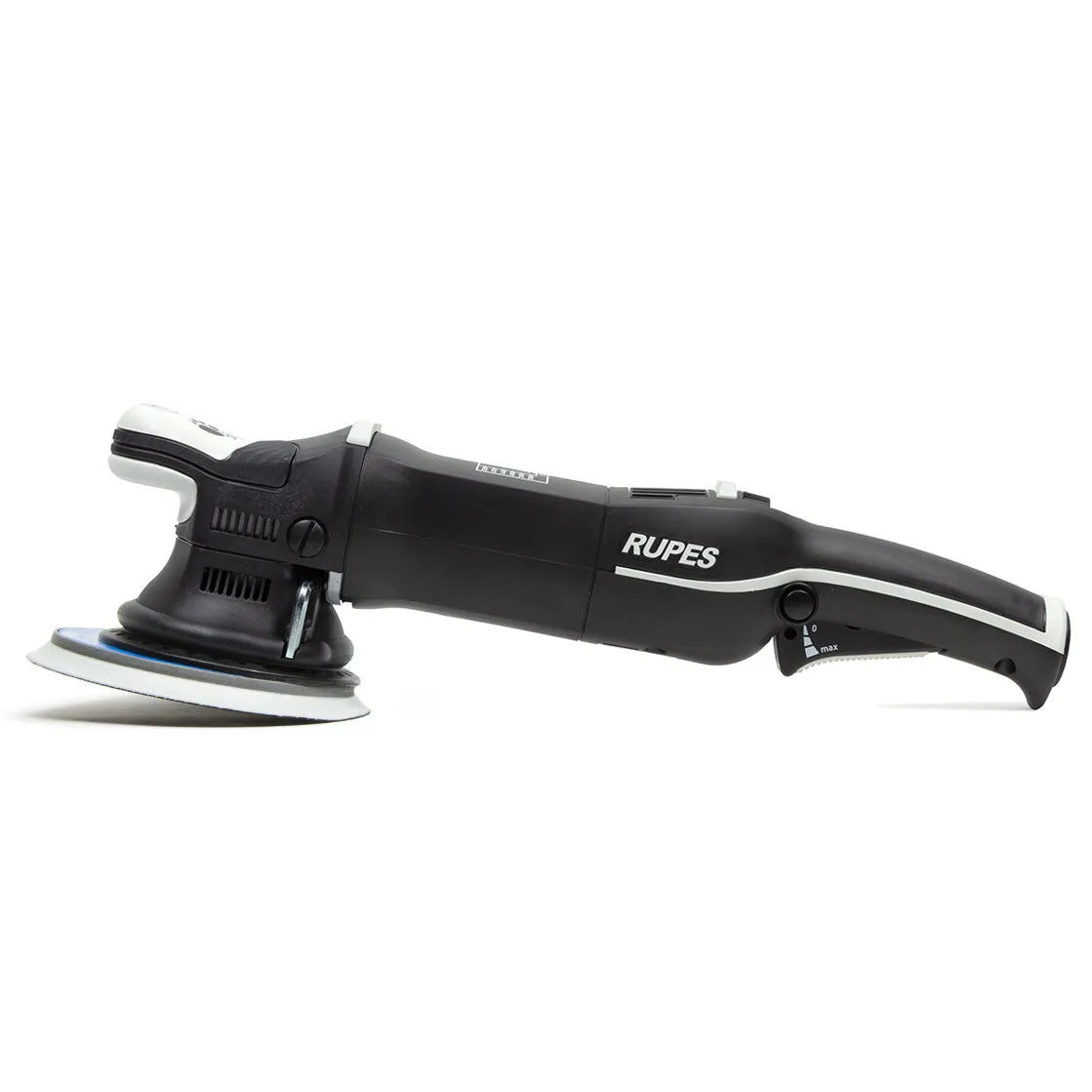

The RUPES LHR 21III BigFoot Polisher (which will no doubt soon become commonly referred to as the Mark 3) improves upon its predecessor in a number of subtle ways, all linked to the quality of the user experience. For starters, the ergonomics have been improved, with a non-slip rubberised head for better control and rubberised inserts in the rear handle for better feel, and an additional non-marking tool rest for better stability when the machine is not in use. In addition, the speed controls have been improved, via the inclusion of a new speed selection dial and a new progressive trigger. The new electronic speed selection dial allows for deliberate and precise adjustment of the top speed of the polisher, without requiring the user to move his or her hands; only a subtle roll of the thumb is required instead. The new progressive trigger acts like a throttle to control speeds within the maximum range set by the speed dial, and thus allows the user to make speed adjustments on the fly for better control and precision. With these improvements in mind, who is the RUPES LHR 21III BigFoot Polisher ideal for? Well, given its gigantic 21 mm throw and that it uses a relatively large fixed-size backing plate (150 mm) that only accepts the largest versions of the various pads available in the BigFoot Random Orbital Polishing System, the answer is professional refinishers who regularly need to correct large areas of paint to a very high standard in as little time as possible. Time is money for professional users, and investing in a RUPES LHR 21III BigFoot Polisher quickly pays off. RUPES have raised the proverbial bar yet again!
Key Features
Description

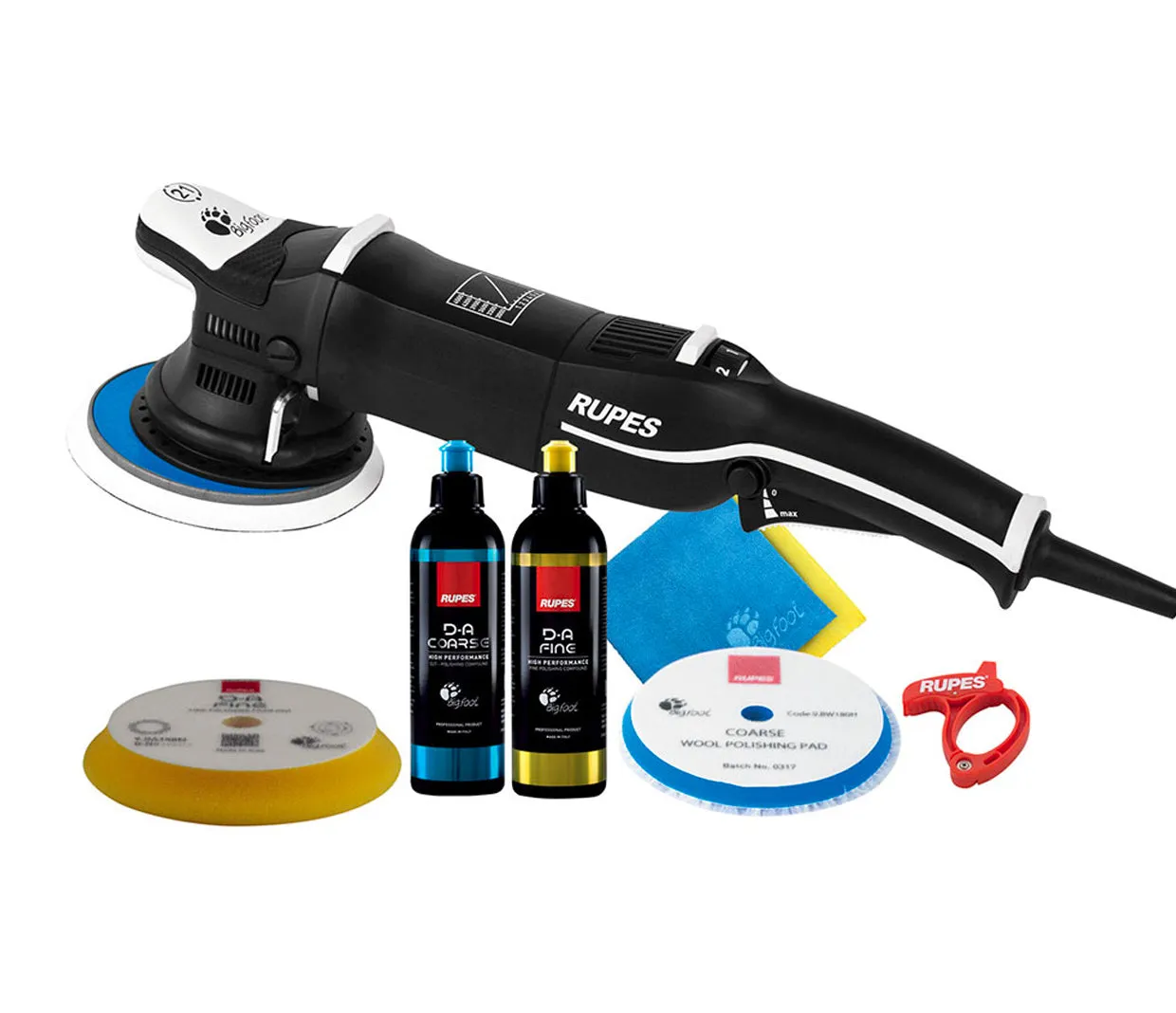

RUPES LHR 21III BigFoot Polisher - BAS Kit
This kit comprises...
D-A COARSE polishing compound 250ml(9.DACOARSE)
D-A FINE polishing compound 250ml(9.DAFINE)
Wool polishing pad COARSE Ø160 mm (9.NW160H)
D-A FINE foam polishing pad Ø150-180mm - Ø6”-7” (9.DA180M)
Microfiber cloth Blue ( 9.BF9050)
Microfiber cloth Yellow(9.BF9060)
Cable Clamp(9.Z1024)

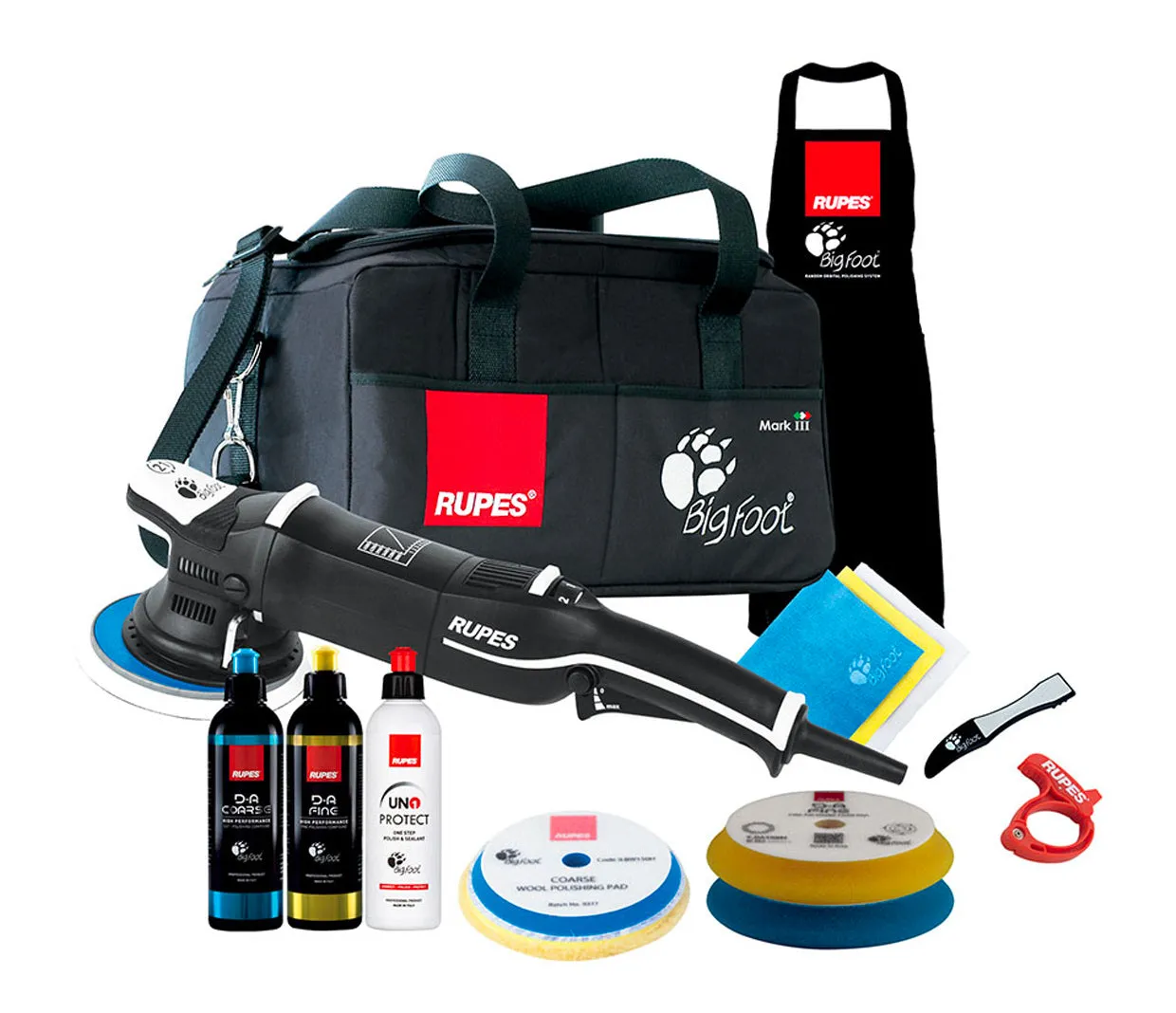

RUPES LHR 21III BigFoot Polisher - LUX Kit
This kit comprises...
D-A COARSE polishing compound 250ml(9.DACOARSE)
D-A FINE polishing compound 250ml(9.DAFINE)
UNO PROTECT One-Step Polish & Sealant 250ml(9.PROTECT)
Wool polishing pad COARSE Ø160 mm (9.NW160H)
Wool polishing pad FINE Ø160 mm ( 9.NW160M)
D-A COARSE foam polishing pad Ø150-180mm - Ø6”-7”( 9 .DA180H)
D-A FINE foam polishing pad Ø150-180mm - Ø6”-7” (9.DA180M)
Microfiber cloth Blue ( 9.BF9050)
Microfiber cloth Yellow( 9.BF9060)
Microfiber cloth White(9.BF9070)
Claw pad(9.BF7001)
Cable Clamp( 9.Z1024)
BIGFOOT apron( 9.Z868)
BIGFOOT tools bag( 9.Z1043/BF)
Specification
AC-Powered | Yes |
---|---|
Battery Type | n/a |
Battery-Powered | No |
CE Approved | Yes |
Cable Length | 8.7 m |
Drive Type | Random orbital (free-spinning) |
Interchangeable Backing Plate | No |
Net Weight | 2.7 kg |
Orbital Throw | 21 mm |
Plug Type | UK 3-pin (G) |
Power Rating | 500 W |
Running Time | n/a |
Soft Start | Yes |
Sound Pressure Level | 84 dB(A) |
Speed Lock | Yes |
Speed Range | 3000 - 4500 OPM |
Supplied Backing Plate | 150 mm |
Thread Size | M8 (fixing bolt supplied) |
Variable Speed Control | Yes |
Vibration Level (3 Axis) | 3.65 m/s² |
Voltage | 230 V |
Warranty | 1 year return to base |
How To Use
Recommended method for correcting soft paint using the BigFoot system:
To correct obvious swirl marks and other common paint defects, start out with Rupes D-A FINE polishing compound on a RUPES D-A FINE foam polishing pad. Working at a low to moderate machine speed, with moderate arm speed and light pressure, should enable you to correct a large proportion of the defects in just 1-2 attempts. If your paint is in bad condition and you subsequently find that more correction is needed, switch to Rupes D-A FINE polishing compound on a RUPES Wool polishing pad FINE - this combination offers more cutting power, but should be used sparingly, as the rate of paint removal increases significantly. When you are happy with the level of correction, follow up again with Rupes D-A FINE polishing compound on a RUPES D-A FINE foam polishing pad, in order to maximise surface gloss.
Recommended method for correcting intermediate paint using the BigFoot system:
To correct obvious swirl marks and other common paint defects, start out with Rupes D-A FINE polishing compound on a RUPES D-A Coarse foam polishing pad. Working at a moderate machine speed, with moderate arm speed and light pressure, should enable you to correct a large proportion of the defects in just 1-2 attempts. If your paint is in bad condition and you subsequently find that more correction is needed, switch to Rupes D-A FINE polishing compound on a Rupes Wool polishing pad COARSE - this combination offers more cutting power, but should be used sparingly, as the rate of paint removal increases significantly. When you are happy with the level of correction, follow up with Rupes D-A FINE polishing compound on a RUPES D-A FINE foam polishing pad, in order to maximise surface gloss.
Recommended method for correcting hard paint using the BigFoot system:
To correct obvious swirl marks and other common paint defects, start out with Rupes D-A COARSE polishing compound on a RUPES D-A Coarse foam polishing pad. Working at a moderate to high machine speed, with low arm speed and light to moderate pressure, should enable you to correct a large proportion of the defects in just 1-2 attempts. If your paint is in bad condition and you subsequently find that more correction is needed, switch to Rupes D-A COARSE polishing compound on a Rupes Wool polishing pad COARSE - this combination offers much more cutting power, but should be used sparingly, as the rate of paint removal increases significantly. When you are happy with the level of correction, follow up with Rupes D-A FINE polishing compound on a RUPES D-A FINE foam polishing pad, in order to maximise surface gloss.
General usage notes:
(i) always wear earplugs and safety spectacles when using a machine polisher; (ii) always tie back long hair and tuck away anything else that could accidentally get caught up (e.g. necklaces or headphone cables); (iii) always switch off your machine at the mains before fitting or swapping the backing plate; (iv) always route the cable up and over your opposite shoulder so as to avoid it coming into contact with the car; (v) always ensure that the pad is in contact with the bodywork when you switch the machine on and off - if you don't do this it's likely to fly off at high speed; (vi) always familiarise yourself fully with the instructions provided for the pads and polishes you are using, and adjust your technique accordingly (e.g. tool speed, arm speed and pressure); (vii) always let the machine do the bulk of the work - there is rarely any need to exert heavy pressure when machine polishing (if the current pad and polish you are using aren't delivering sufficient cut, step up to a more aggressive combination rather than trying to force the issue); (viii) always take a break if you notice that the machine is becoming hot during use - hot machines tend to transmit heat down into the backing plate and pad, which can result in the pad failing prematurely; (ix) always lay the machine on its back when it's not in use, to prevent the pad coming into contact with the ground, and; (x) avoid stepping on the power cable at all times.
